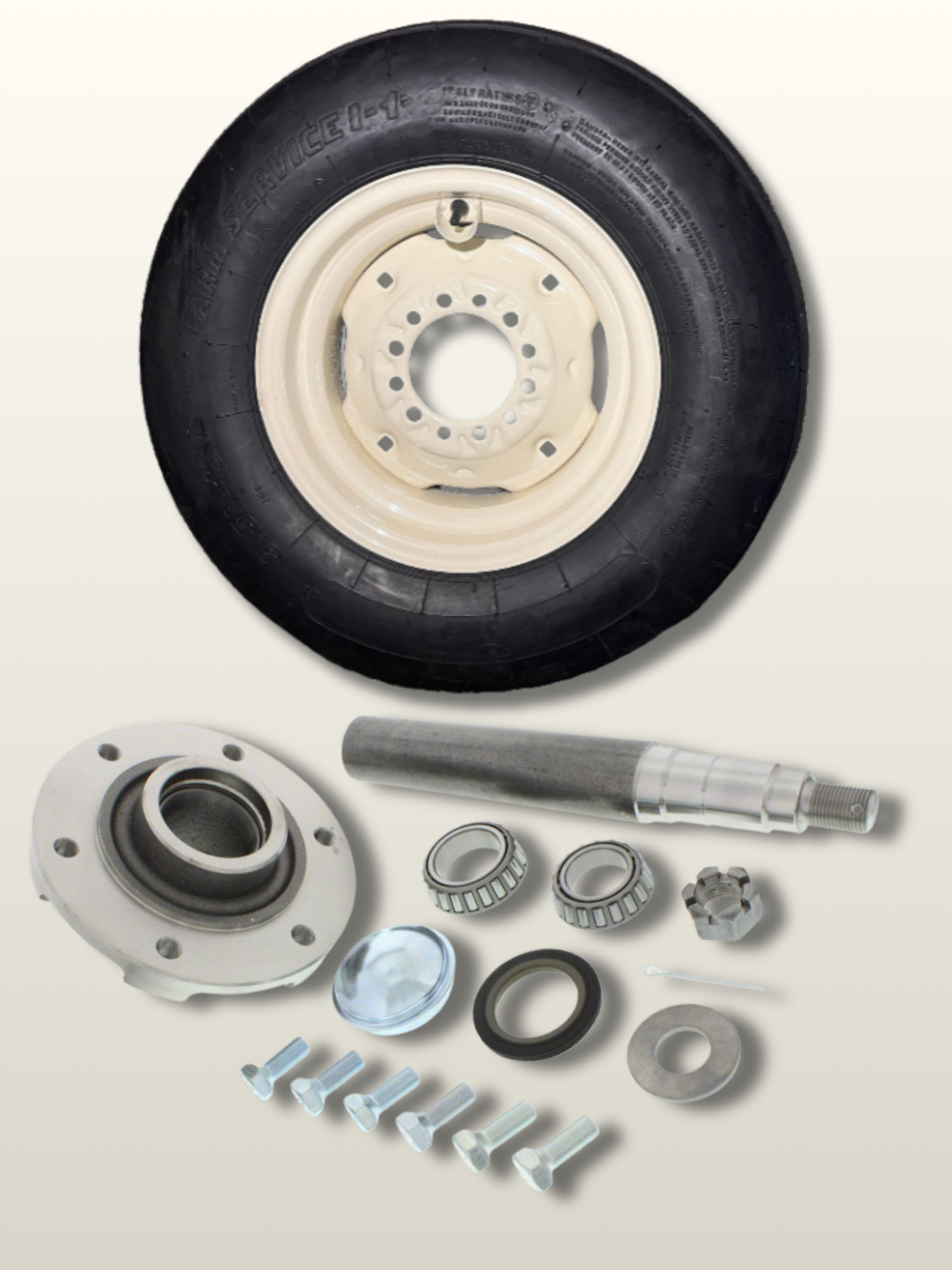

888 Hub & Spindle + 9.5L-15 Wheel Tire 12-PLY – 6 Lug Bundle – Ready to Go
Regular price
$229.00 USD
Regular price
$250.00 USD
Sale
Sale price
$229.00 USD
Couldn't load pickup availability

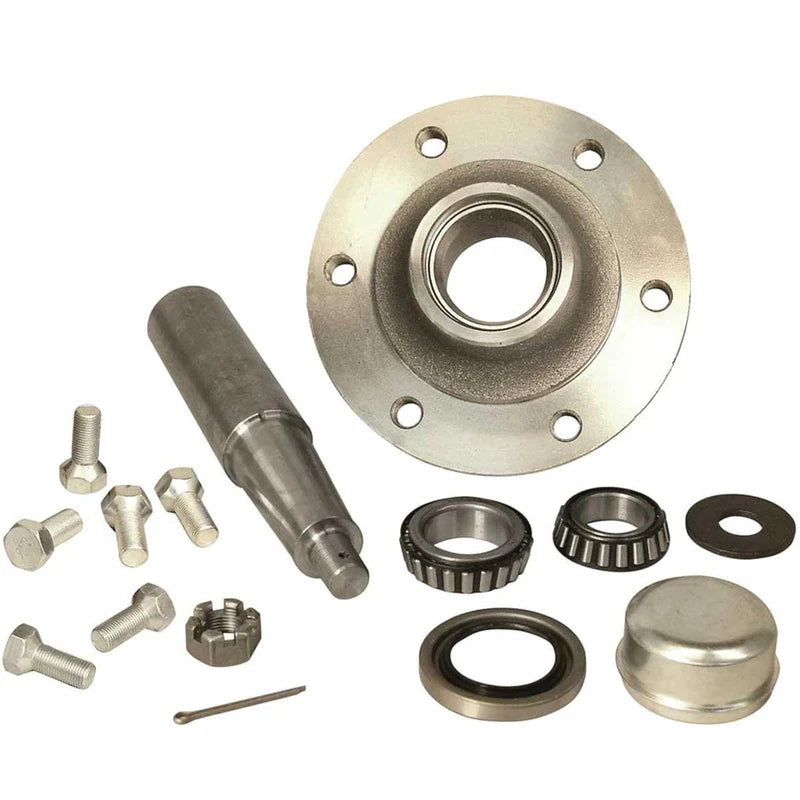

Hub and Spindle 6 Lugs 888 Bundle

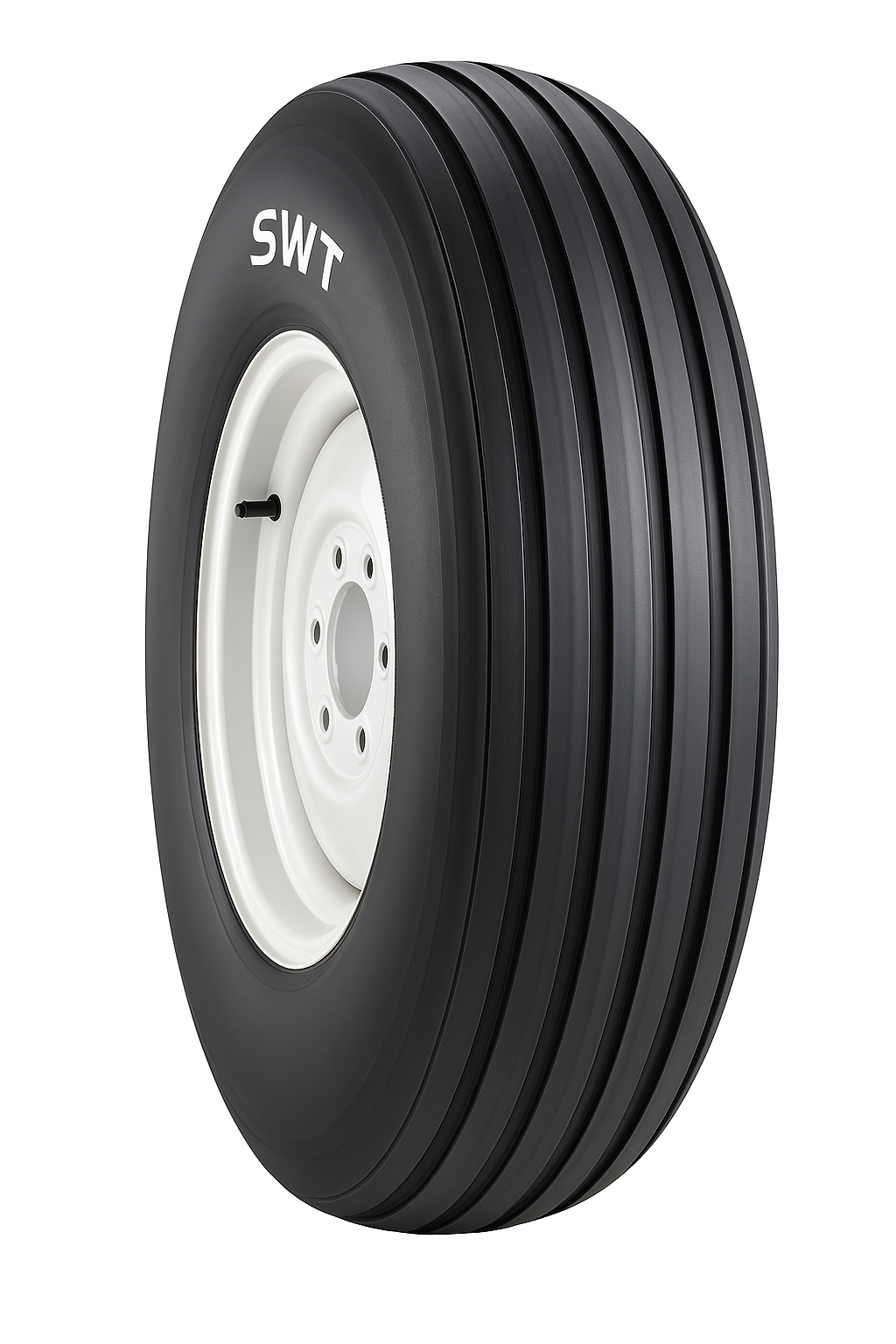

| Measure | Size in Inches | Size in mm |
|---|---|---|
| SD - Section Width | 9 1/2" | ~241.5 mm |
| RW - Rim Width | 7" | ~178 mm |
| RD - Rim Diameter | 15" | 381 mm |
| Overall Diameter | 30 1/8" | 765 mm |
| SL Radius | 13" | 330 mm |
| Rolling Circum | 88" | 2235 mm |
| NSD | ~3/8" | 11 mm |
| Type | Spec |
|---|---|
| Load Capacity kg / lb | 1300 / 2860 |
| Inflation Pressure bar / psi | 3.6 / 52 |
| LoadIndex | 112B |
| Speed kmph | mph | D / 65 kmph | D / 40 mph |
| Measure | Size in Inches | Size in mm |
|---|---|---|
| Width | 6" | ~152.5 mm |
| Diameter | 15" | 381 mm |
| BC | 6" | ~152.5 mm |
| CH - Pilot | 6" | ~152.5 mm |
| Onset | 1 1/8" | 28.5 mm |
Spindle Specifications
| Type | Specification |
|---|---|
| Model | 888 |
| Load Capacity | 3,560 lb |
| Hub Components | 280550 |
| Hub Cups | 280551 |
| Inner Cup | JL69310 / 910263 |
| Outer Cup | LM67010 / 910257 |
| Inner Cone | JL69349 / 910264 |
| Inner Cone Bore Diameter | 1.50" |
| Outer Cone | LM67048 / 910259 |
| Outer Cone Bore Diameter | 1.25" |
| Hub Cap | 909905 |
| Bolt | 943549 |
| Seal | 906284 |
| Dimension A | 1.53" |
| Dimension B | 1.09" |
| Dimension C | 1" |
| Dimension D | 1.53" |
