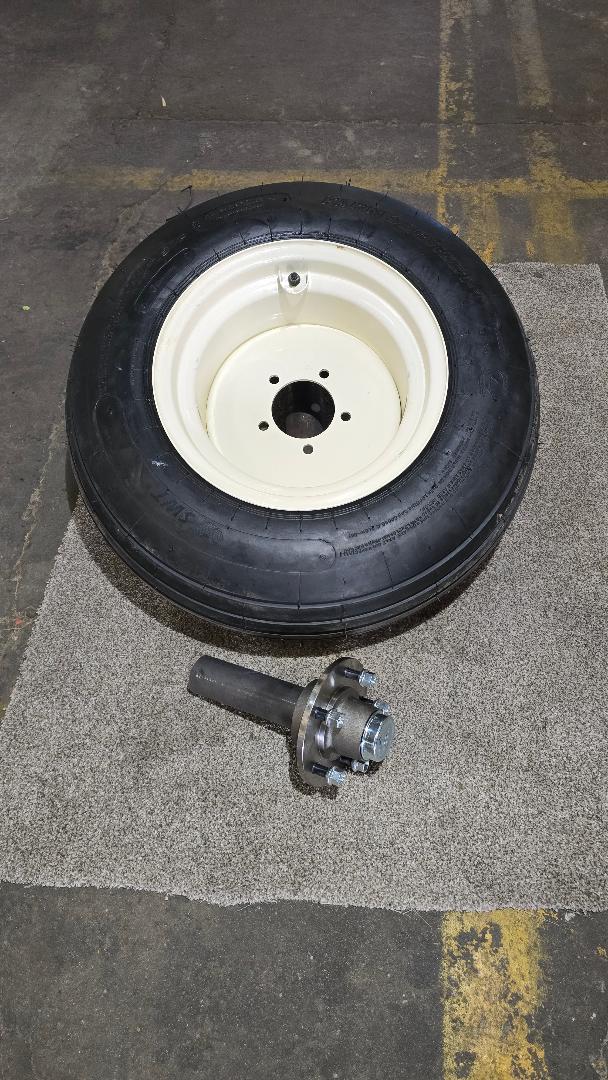

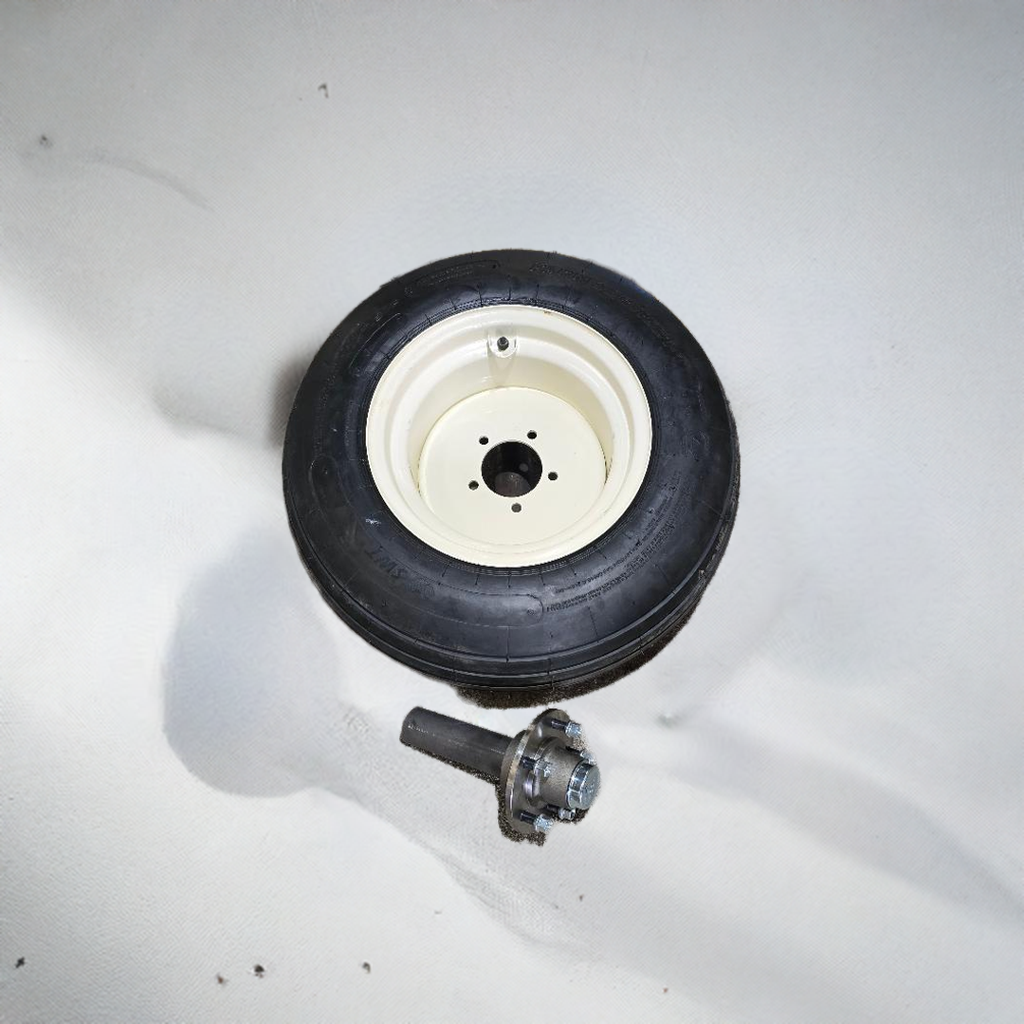

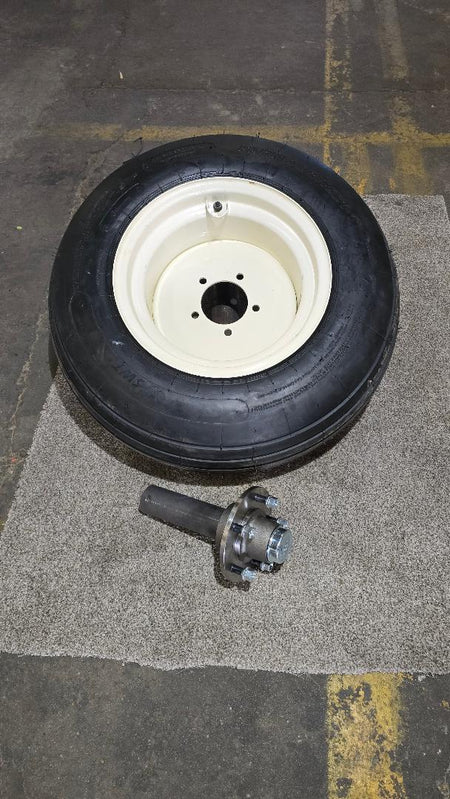

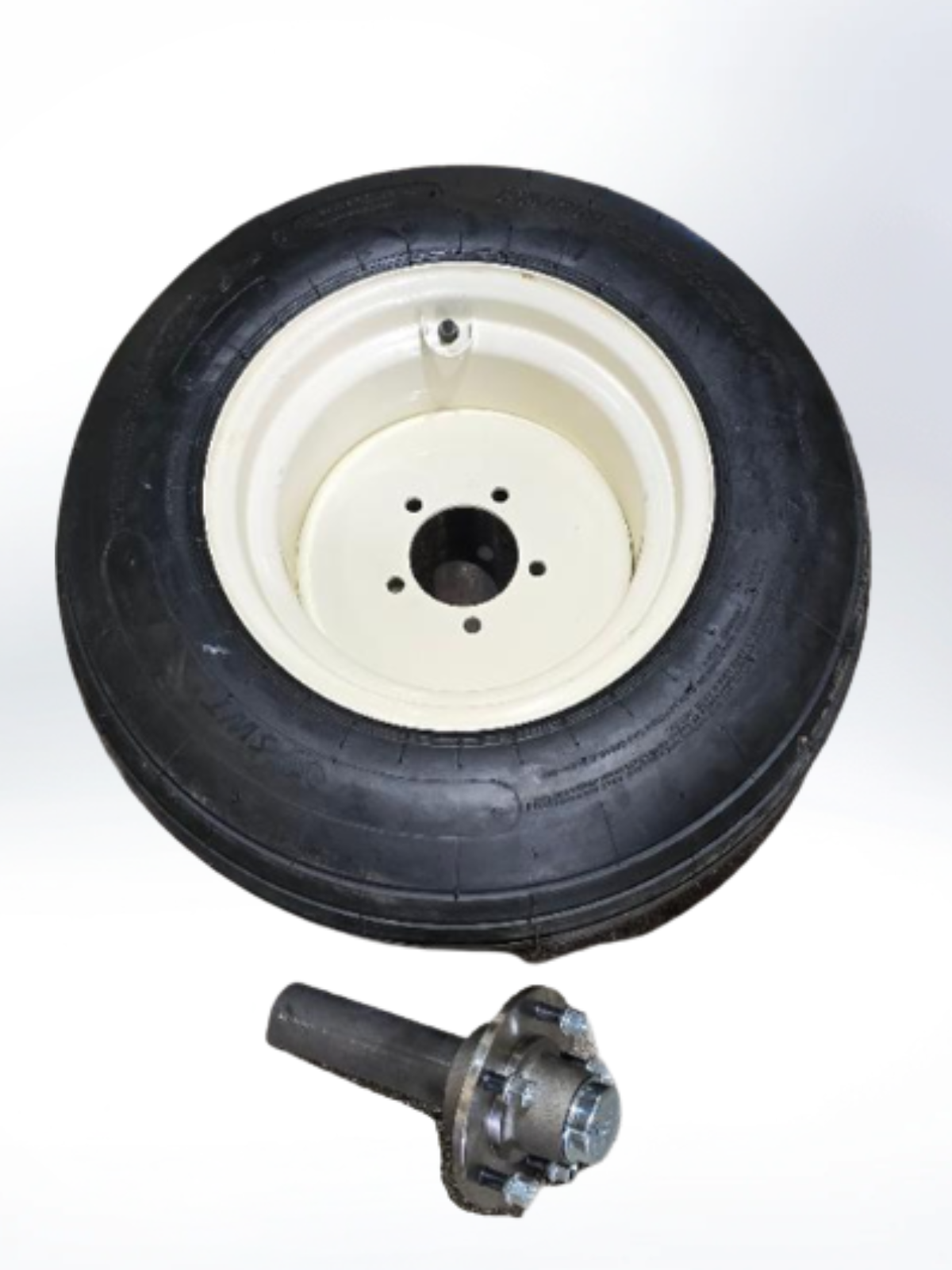

Hub , Spindle, Wheel and Tire Assembly: Load Capacity 3,300 lb Per Tire: 11L-15, PR - 12, Extra Load, TL Tire, 5 Holes Bundle

In stock
$390.00 USD
$425.00 USD Sale $390.00 USD

Speak With an Expert: (786) 815-2415

Email: info@agmachinerydepot.com

Visit Us on Social Media

Description
Tire, Wheel, and Hub & Spindle Data
Tire Measurements
Measure Size in Inches Size in mm
SD - Section Width 11" ~279.5 mm
RW - Rim Width 8" ~203 mm
RD - Rim Diameter 16" ~406.5 mm
Overall Diameter ~31 1/4" 795 mm
SL Radius 14" 356 mm
Rolling Circum 92" 2337 mm
NSD ~3/8" 8 mm
Tire Specifications
Type Spec
Load Capacity kg / lb 1500 / 3300
Inflation Pressure bar / psi 3.3 / 48
LoadIndex 122
Speed kmph | mph D / 65 kmph | D / 40 mph
Wheel Measurements
Measure Size in Inches Size in mm
Width 10" 254 mm
Diameter 15" 381 mm
BC 5 1/2" 140 mm
CH - Pilot 4" 101.5 mm
Offset 0" 0 mm
Hub & Spindle Measurements
Measure Size in Inches Size in mm
SD - Spindle Diameter 2 3/8" 60 mm
HL - Horizontal length 15 3/4" 400 mm
BC 5 1/2" 140 mm
CH 4" 102 mm
Hub & Spindle Specifications
Type Spec
Load Capacity (25 km/h|15 mp/h) - KG / lb 1,650 / 3,600
Load Capacity (40 km/h|25 mp/h) - KG / lb 1,400 / 3,000
