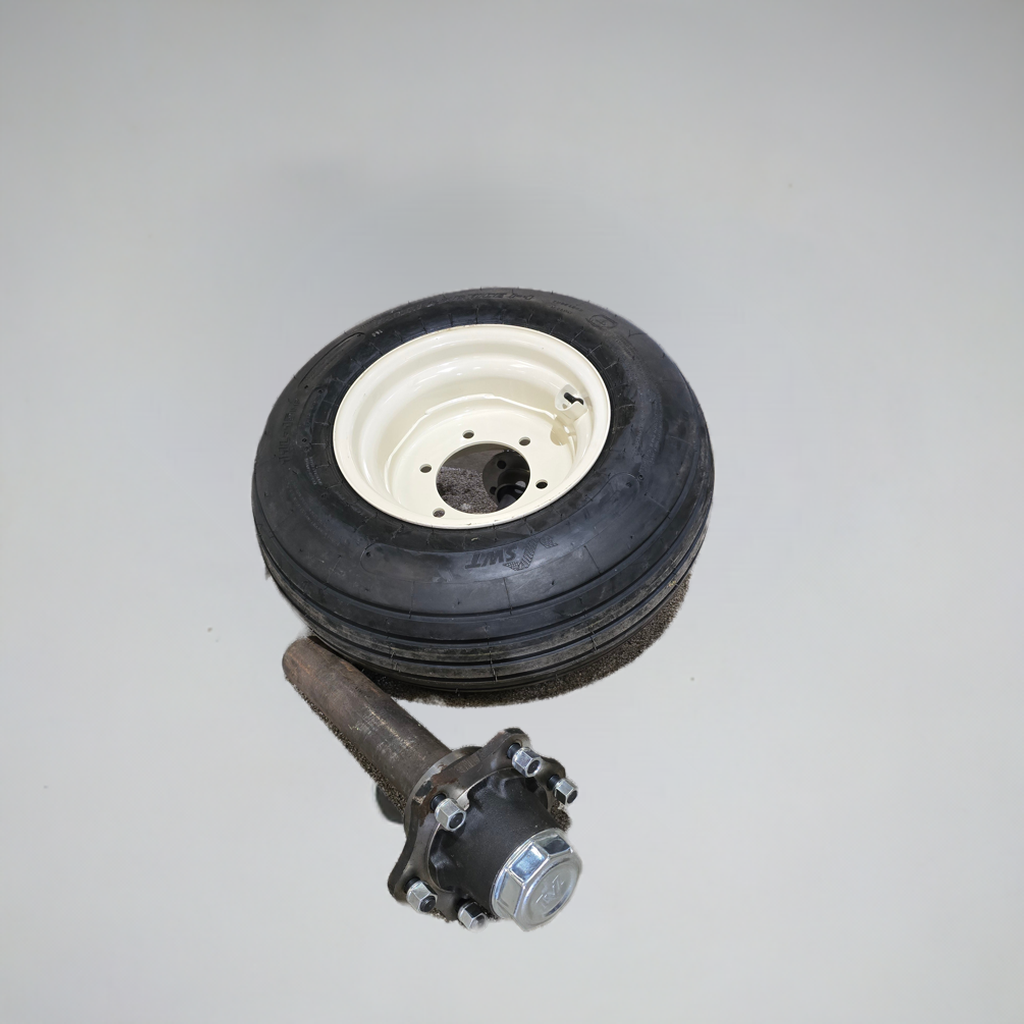

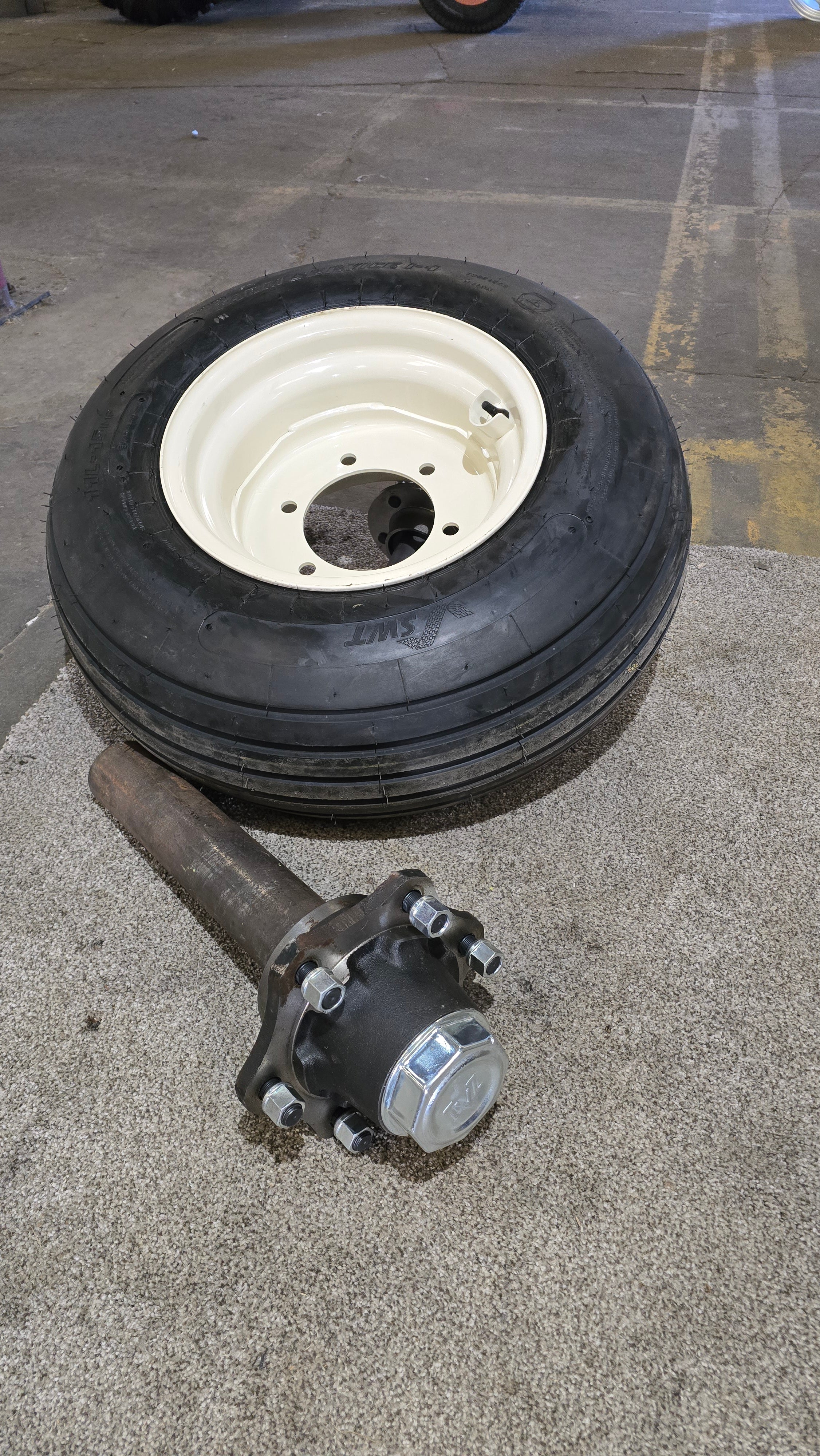

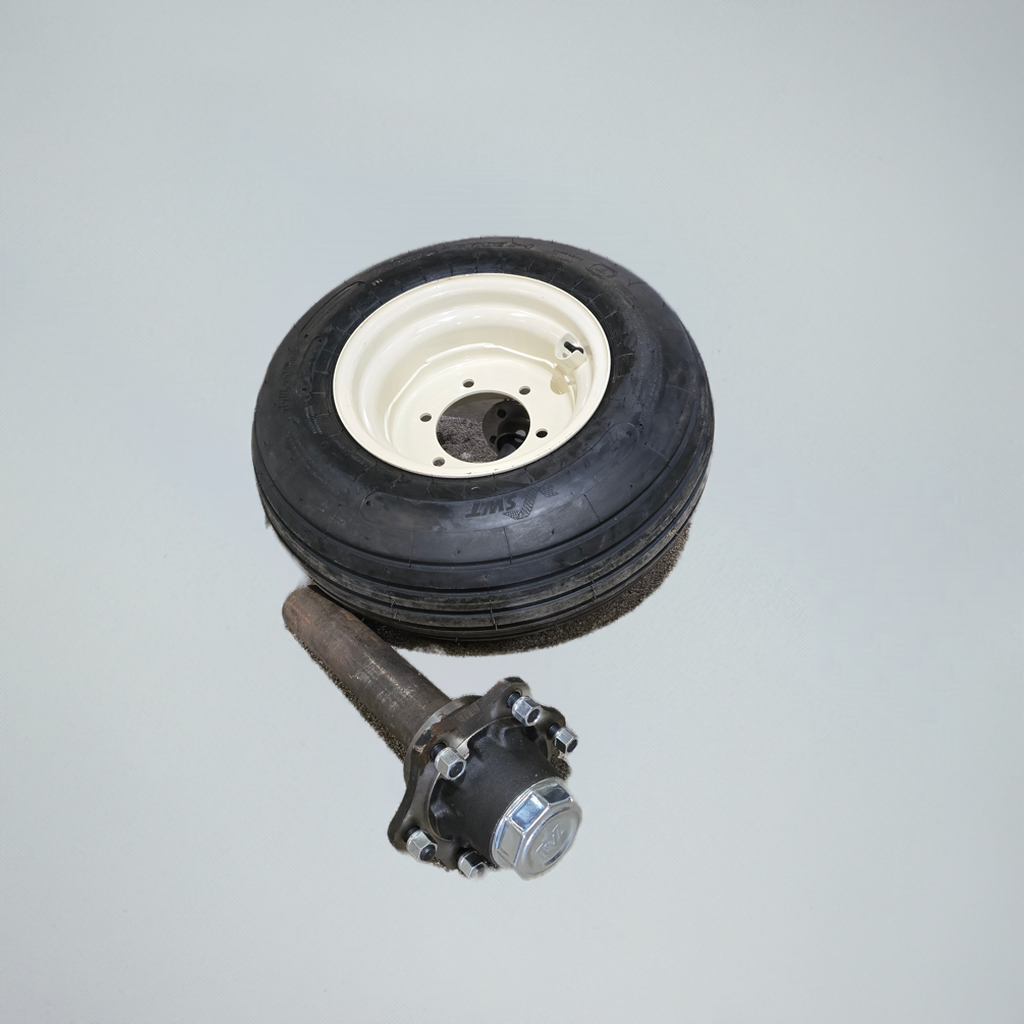

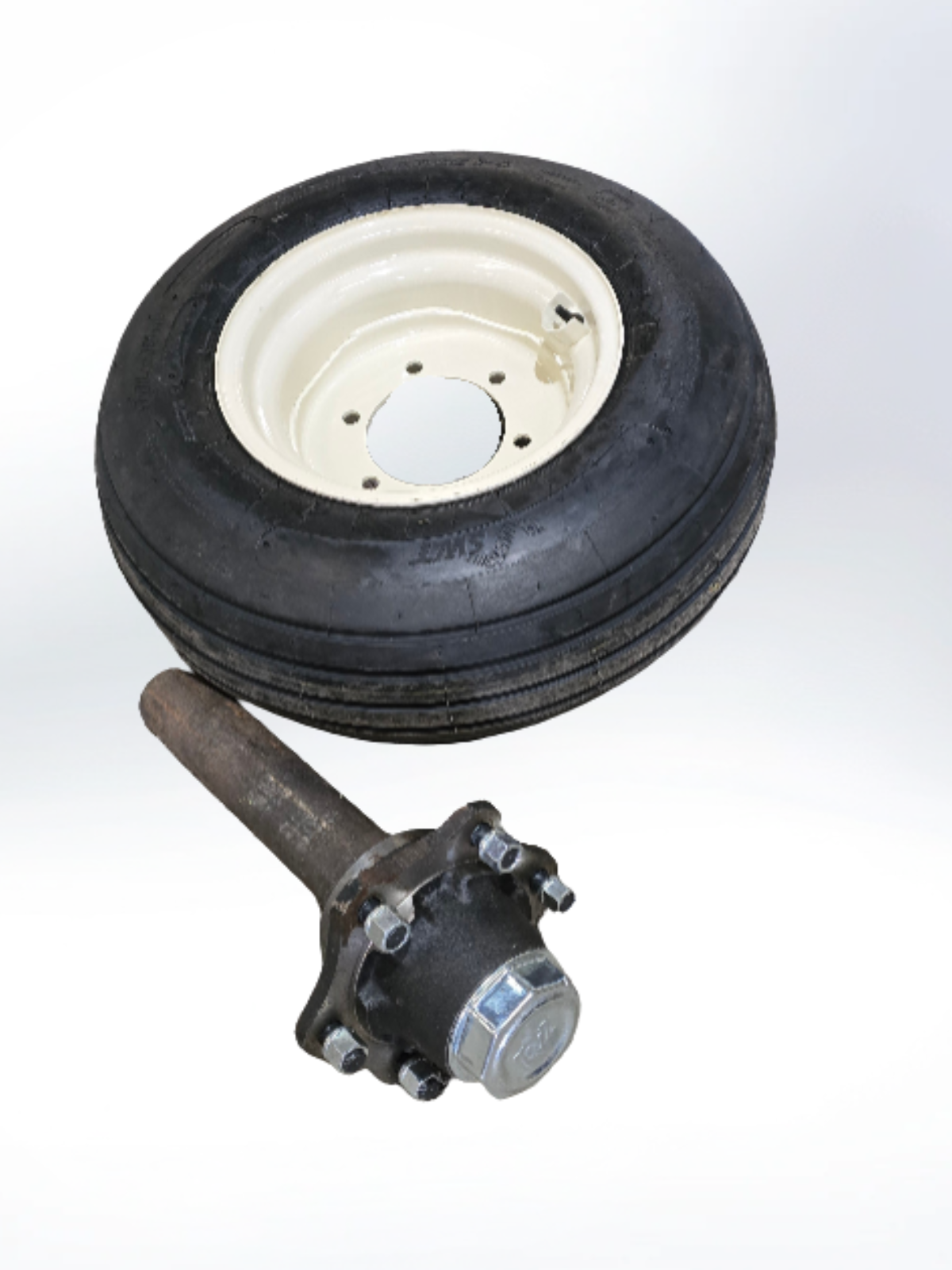

Hub , Spindle, Wheel and Tire Assembly: Load Capacity 4,320 lb Per Tire: 11L-15, PR - 20, Extra Load, TL Tire, 6 Holes Bundle

In stock
$464.00 USD
$499.00 USD Sale $464.00 USD

Speak With an Expert: (786) 815-2415

Email: info@agmachinerydepot.com

Visit Us on Social Media

Description
Tire, Wheel, and Hub & Spindle Data
Tire Measurements
Measure Size in Inches Size in mm
SD - Section Width 11" ~279.5 mm
RW - Rim Width 8" ~203 mm
RD - Rim Diameter 15" 381 mm
Overall Diameter ~31 1/8" 790 mm
SL Radius 13" 330 mm
Rolling Circum 89" 2261 mm
NSD ~3/8" 9 mm
Tire Specifications
Type Spec
Load Capacity kg / lb 1964 / 4320
Inflation Pressure bar / psi 5.3 / 75
LoadIndex 131
Speed kmph | mph D / 65 kmph | D / 40 mph
Wheel Measurements
Measure Size in Inches Size in mm
Width 10" 254 mm
Diameter 15" 381 mm
BC 6" ~152.5 mm
CH - Pilot 4 5/8" ~117.5 mm
Onset 1 1/8" 28.5 mm
Hub & Spindle Measurements
Measure Size in Inches Size in mm
SD - Spindle Diameter 2 3/8" 70 mm
HL - Horizontal length 15 3/4" 400 mm
BC ~8 1/8" 205 mm
CH ~6 1/4" 160 mm
Hub & Spindle Specifications
Type Spec
Load Capacity (25 km/h|15 mp/h) - KG / lb 3,600 / 7,900
Load Capacity (40 km/h|25 mp/h) - KG / lb 3,350 / 7,380
