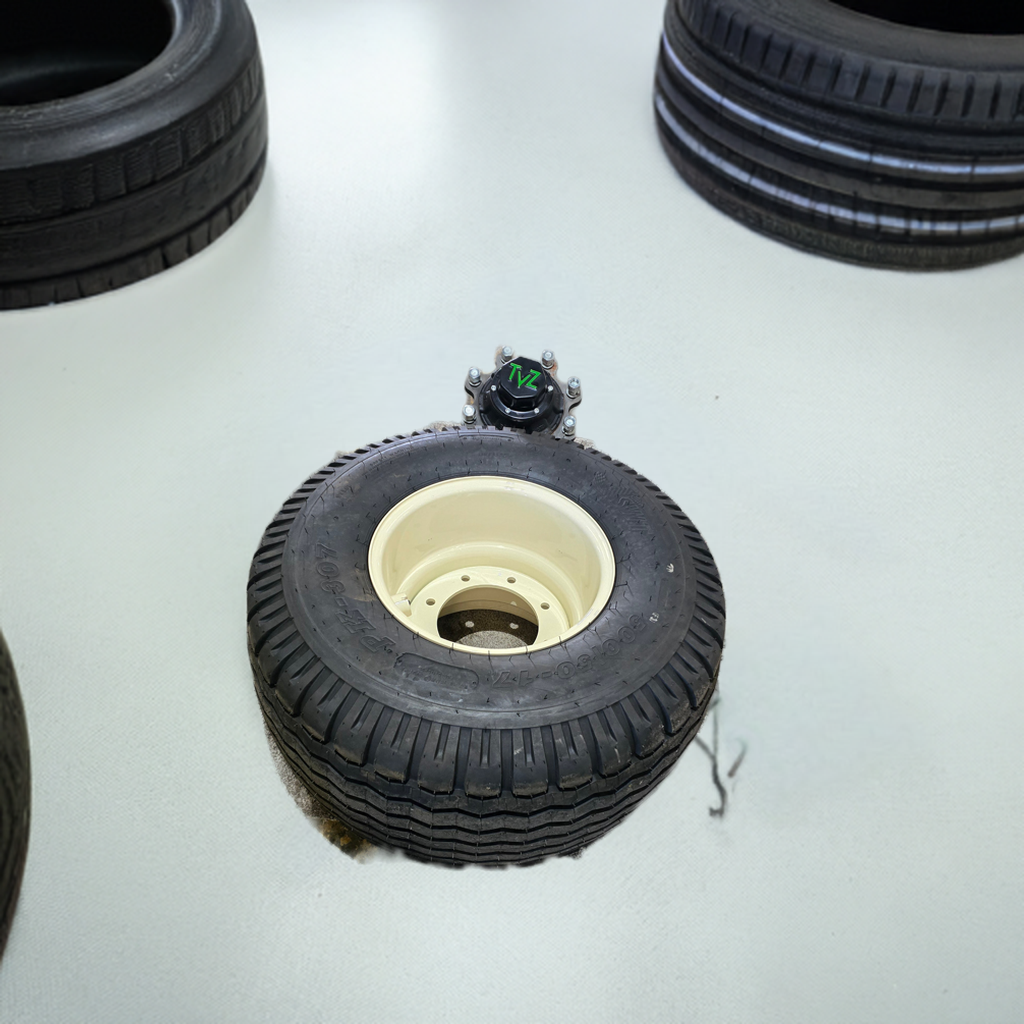

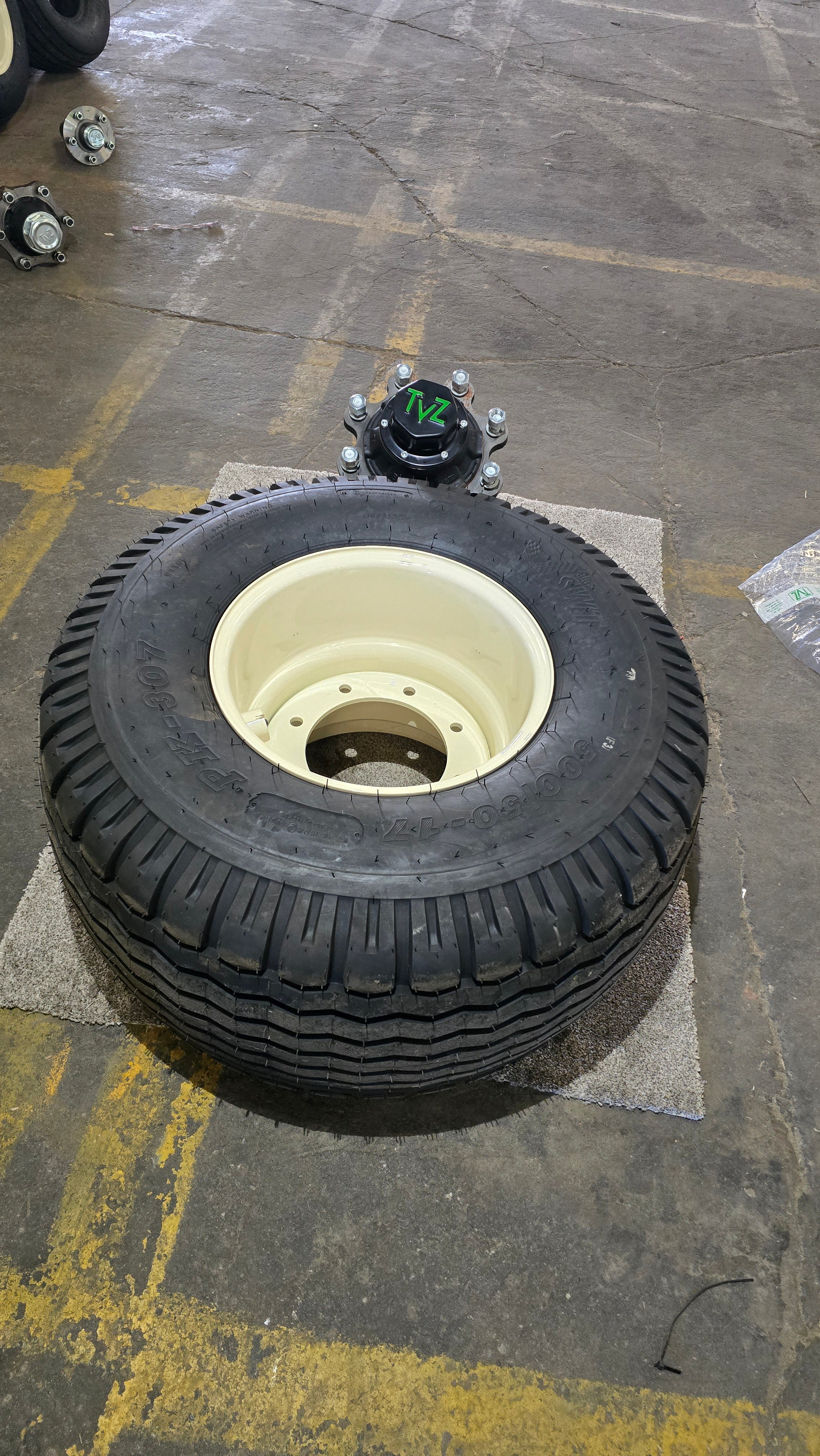

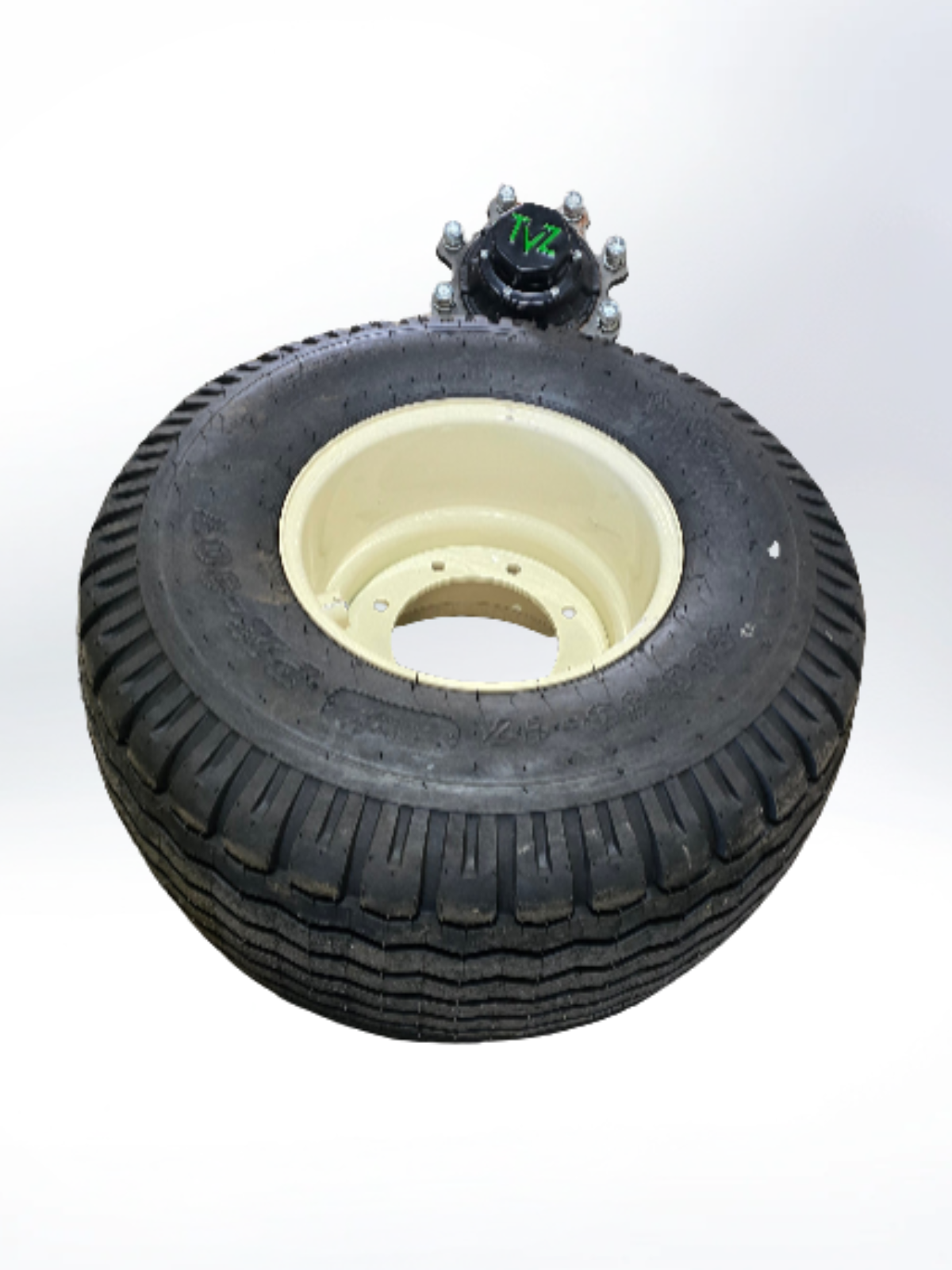

Hub , Spindle, Wheel and Tire Assembly: Load Capacity 9,075 lb Per Tire: 500/50-17, PR - 18, Extra Load, TL Tire, 8 Holes Bundle

In stock
$753.00 USD
$788.00 USD Sale $753.00 USD

Speak With an Expert: (786) 815-2415

Email: info@agmachinerydepot.com

Visit Us on Social Media

Description
Tire, Wheel, and Hub & Spindle Data
Tire Measurements
Measure Size in Inches Size in mm
SD - Section Width ~19 3/4" 503 mm
RW - Rim Width 16" ~406.5 mm
RD - Rim Diameter 17" ~432 mm
Overall Diameter ~37 1/4" 945 mm
SL Radius 15" 381 mm
Rolling Circum ~98" 2490 mm
NSD ~1/2" 12 mm


Tire Specifications
Type Spec
AR - Aspect Ratio 50 Ratio
Load Capacity kg / lb 4125 / 9075
Inflation Pressure bar / psi 4.8 / 68
LoadIndex 157
Speed kmph | mph A8/40 kmph | A8/25 mph


Wheel Measurements
Measure Size in Inches Size in mm
Width 16" ~406.5 mm
Diameter 17" ~432 mm
BC ~8 1/8" 205 mm
CH - Pilot ~6 3/8" 161 mm
Offset 0" 0 mm


Hub & Spindle Measurements
Measure Size in Inches Size in mm
SD - Spindle Diameter ~3 1/8" 80 mm
HL - Horizontal length 15 3/4" 400 mm
BC ~10 7/8" 275 mm
CH ~8 5/8" 220 mm


Hub & Spindle Specifications
Type Spec
Load Capacity (25 km/h|15 mp/h) - KG / lb 5,000 / 11,000
Load Capacity (40 km/h|25 mp/h) - KG / lb 4,600 / 10,140
