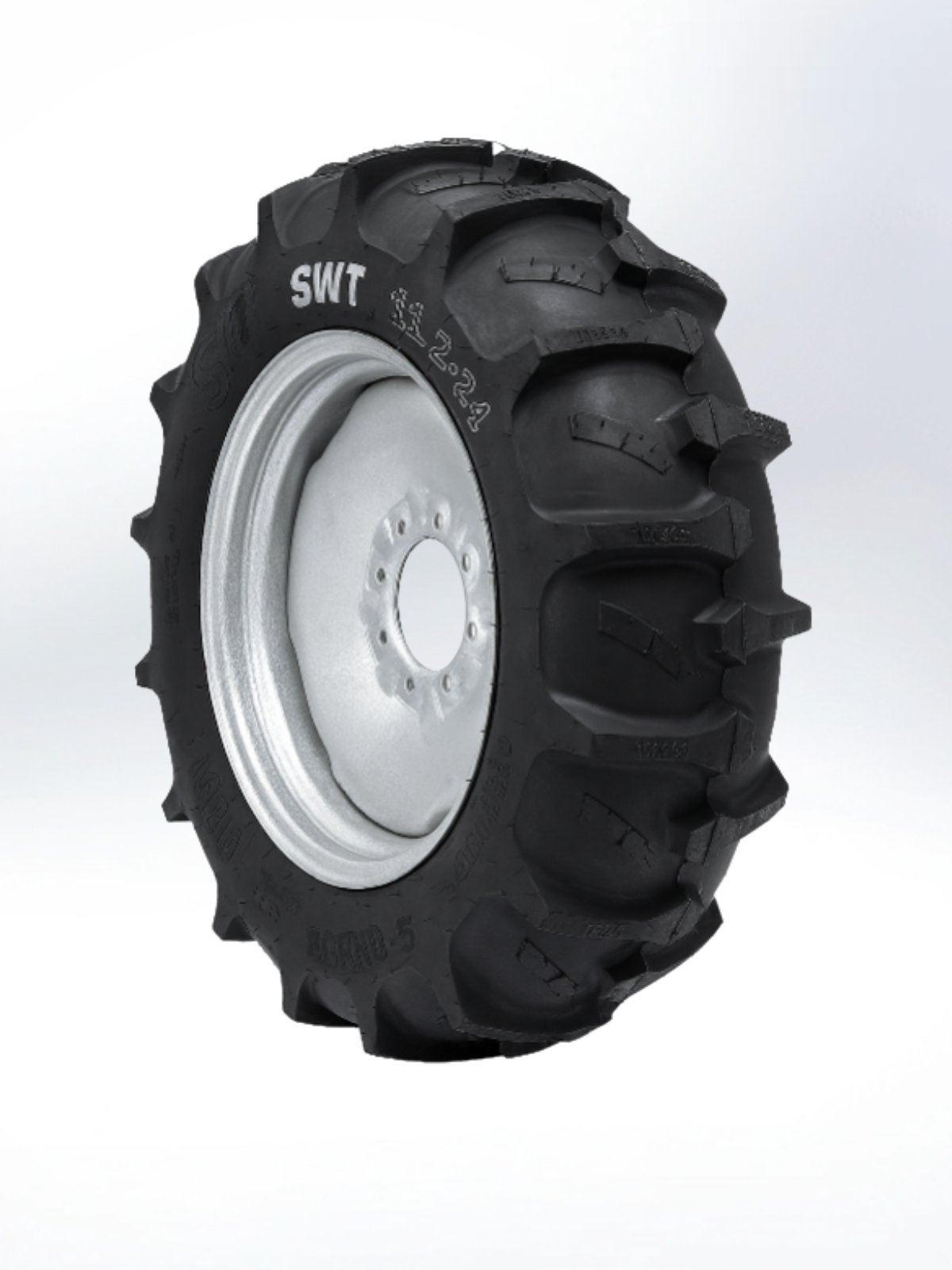

11.2-24 Irrigation Tire & Wheel Assembly – 8 Bolt Non Directional
Couldn't load pickup availability
11.2-24 Irrigation Tire & Wheel Assembly – 8 Bolt Pivot System Setup
Built for Center Pivot Irrigation Systems
This 11.2-24 irrigation tire and wheel assembly is engineered for reliable performance, durability, and consistent field operation. Designed specifically for center pivot irrigation systems, this assembly provides stable support and smooth movement across agricultural terrain.
Designed for Continuous Irrigation Operation
Built to withstand long hours of use, this pivot irrigation tire assembly offers excellent load capacity, traction, and durability. Its construction helps minimize downtime while maintaining reliable system performance.
Key Features
- 11.2-24 tire size for irrigation systems
- Complete tire and wheel assembly for easy installation
- 8 bolt pattern for secure mounting
- Heavy-duty construction for long service life
- Designed for pivot irrigation use
- Reliable performance across field conditions
Tire Measurements
| Measurement | Inches | Millimeters |
|---|---|---|
| Section Width | ~11 1/4" | 284.5 mm |
| Rim Width | 8" | 254 mm |
| Rim Diameter | 24" | 609.5 mm |
| Overall Diameter | 43 5/8" | 1108 mm |
| Tread Depth | 1" | 25 mm |
Tire Specifications
| Specification | Details |
|---|---|
| Load Capacity | 1120 kg / 2465 lbs |
| Inflation Pressure | 2.1 bar / 30 psi |
| Load Index | 112 |
| Speed Rating | A6 (30 km/h / 18 mph) |
Wheel Specifications
| Measurement | Inches | Millimeters |
|---|---|---|
| Width | 12" | ~305 mm |
| Diameter | 24" | 609.5 mm |
| Bolt Circle (BC) | 8" | ~203 mm |
| Center Hole (Pilot) | 6" | ~152.5 mm |
| Offset | 2" | ~51 mm |
Ideal Applications
- Center pivot irrigation systems
- Agricultural irrigation equipment
- Continuous-use farming operations
Important Disclaimer
This product is not manufactured, authorized, or endorsed by Valley, Lindsay/Zimmatic, Reinke, Pierce, Olson, or Lockwood.
AgMachineryDepot operates as an independent parts supplier and has no affiliation with these brands.
Shipping Information
Due to the size and weight of this item, shipping costs will vary. Please contact us for a freight quote before placing your order.
Call us: 229-231-2111
Upgrade your irrigation system with a durable 11.2-24 tire and wheel assembly built for dependable agricultural performance. Add to cart today.
