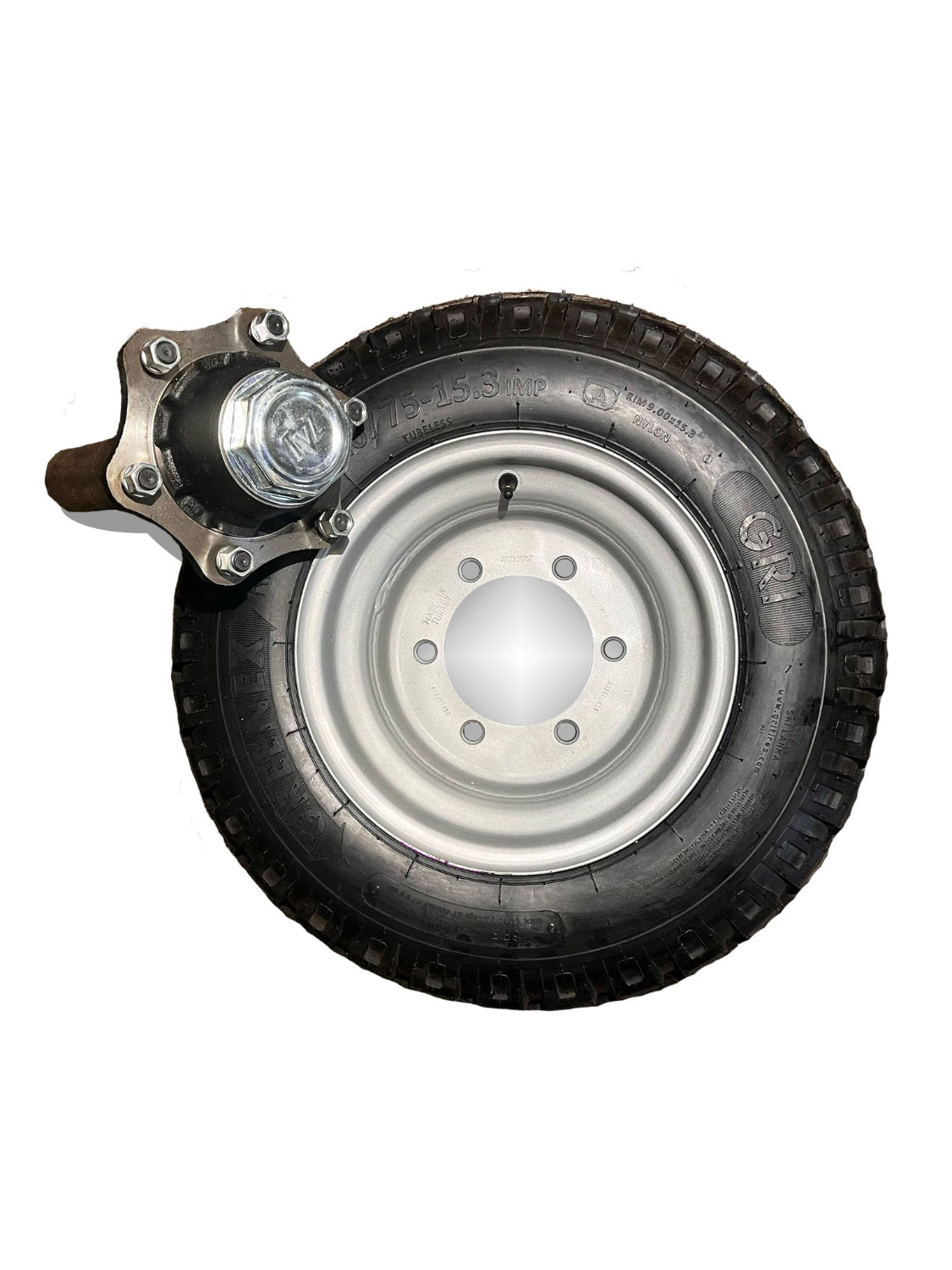

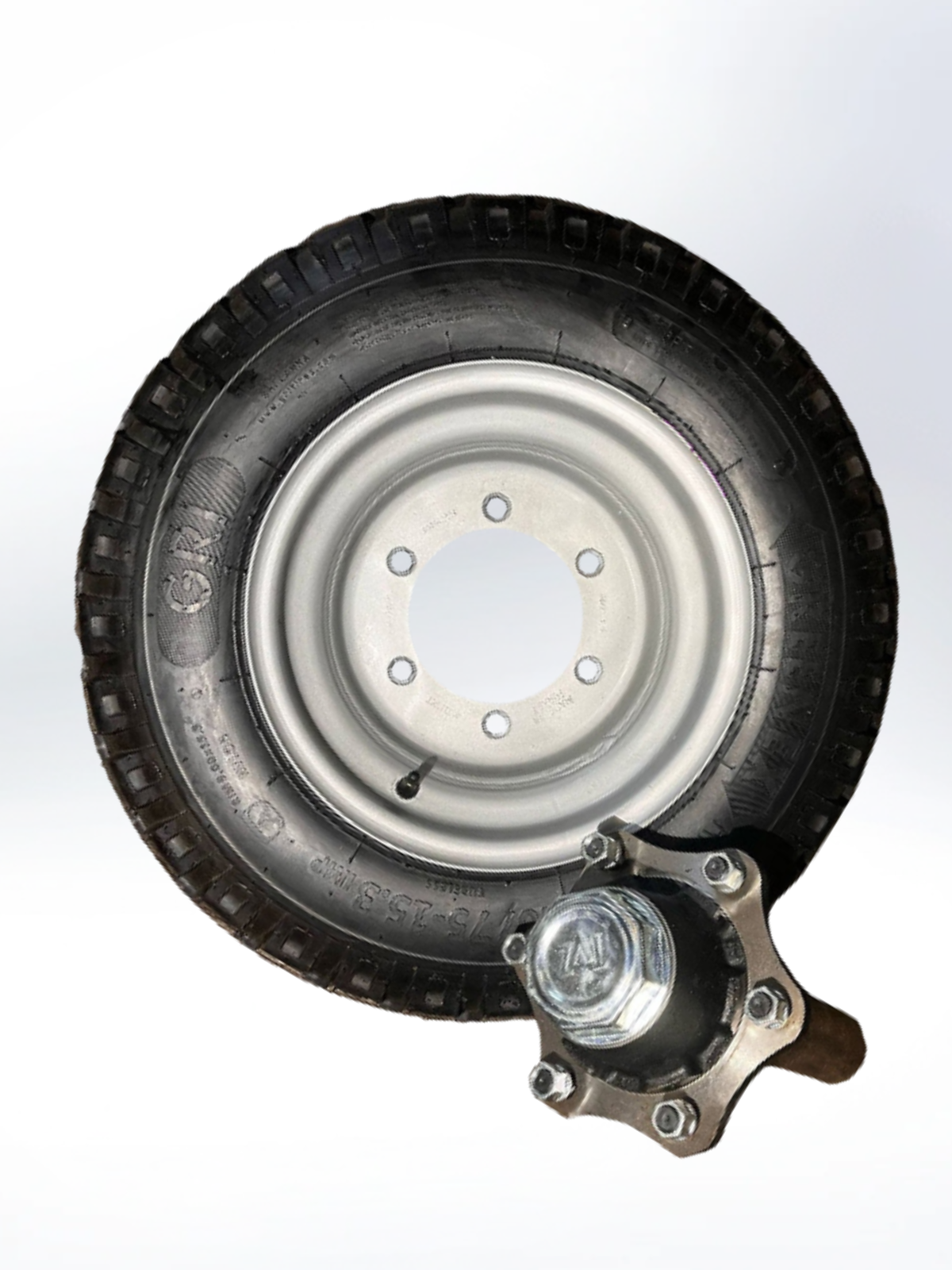

Hub , Spindle, Wheel and Tire Assembly: Load Capacity 8,250 lb Per Tire: 10.0/75-15.3, PR - 14, Extra Load, TL Tire, 6 Holes Bundle

In stock
$230.00 USD
$395.00 USD Sale $230.00 USD

Speak With an Expert: (786) 815-2415

Email: info@agmachinerydepot.com

Visit Us on Social Media

Description



Tire Measurements
Measure Size in Inches Size in mm
SD - Section Width 10" 254 mm
RW - Rim Width 9" 228.5 mm
RD - Rim Diameter ~15 1/4" ~388.5 mm
Overall Diameter ~29 7/8" 760 mm
SL Radius 14" 356 mm
Rolling Circum 88" 2235 mm
NSD ~3/8" 9 mm
Tire Specifications
Type Spec
AR - Aspect Ratio 75 Ratio
Load Capacity kg / lb 1900 / 4180
Inflation Pressure bar / psi 6.9 / 101
LoadIndex 130
Speed kmph | mph A8/40 kmph | A8/25 mph
Wheel Measurements
Measure Size in Inches Size in mm
Width 9" 228.5 mm
Diameter ~15 1/4" ~388.5 mm
BC ~8 1/8" 205 mm
CH - Pilot ~6 3/8" 161 mm
Offset 0" 0 mm
Hub & Spindle Measurements
Measure Size in Inches Size in mm
SD - Spindle Diameter 2 3/4" 70 mm
HL - Horizontal length 15 3/4" 400 mm
BC ~8 1/8" 205 mm
CH ~6 1/4" 160 mm
Hub & Spindle Specifications
Type Spec
Load Capacity (25 km/h|15 mp/h) - KG / lb 4,250 / 9,350
Load Capacity (40 km/h|25 mp/h) - KG / lb 3,750 / 8,250
